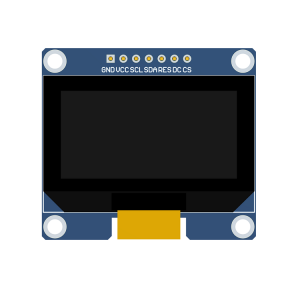

Product Picture
Product Description
- 1.54 inch OLED screen with black and white, black or blue or yellow and blue color display
- 128x64 resolution for clear display and high contrast
- Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
- Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required
- The default is 4-wire SPI bus, which can choose IIC bus
- Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
- Military-grade process standards, long-term stable work
- Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
- Provide underlying driver technical support
Product Parameters
Name | Parameter |
Display Color | White, blue, yellow and blue |
SKU | MSP154W
MSP154B |
Screen Size | 1.54(inch) |
Screen Type | OLED |
Driver IC | SSD1309 |
Resolution | 128*64 (Pixel) |
Module Interface | 4-line SPI、IIC interface |
Active Area | 35.052x17.516(mm) |
Touch Screen Type | have no touch screen |
Touch IC | have no IC |
Module PCB Size | 42.40x38.00(mm) |
Visual Angle | >160° |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
Operating Voltage | 3.3V~5V |
Power Consumption | TBD |
Rough Weight(Package containing) | 12(g) |
Interface Definition

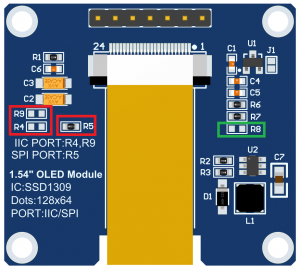

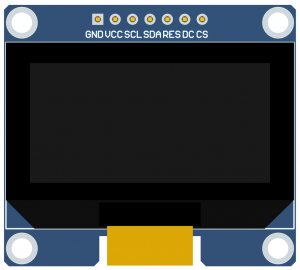

Picture 1. Module pin silk screen | Picture 2. Rear view of the module |
NOTE:
- 1.This module supports IIC and 4-wire SPI interface bus mode switching (shown in red box in Figure 2). The details are as follows:
- A.Using 4.7K resistance to solder only R5 resistors, then choose 4-wire SPI bus interface (default);
- B.Using 4.7K resistance to solder only R4, R9 resistors, then select the IIC bus interface;
- 2.After the interface bus mode is switched, you need to select the corresponding software and the corresponding wiring pins (as shown in Figure 1)
- for the module to operate normally. The corresponding wiring pins are described as follows:
- A.select the 4-wire SPI bus interface, all pins need to be used;
- B.select the IIC bus interface, connect GND, VCC, SCL, SDA and RES, and connect DC and CS to power ground
- 3.Weld R8 (as shown in the green box in Figure 2), then the CS pin is grounded, and this pin does not need to be connected
Number | Module Pin | Pin description |
1 | GND | OLED power ground |
2 | VCC | OLED power positive (3.3V~5V) |
3 | SCL | OLED SPI and IIC bus clock signals |
4 | SDA | OLED SPI and IIC bus data signals |
5 | RES | OLED reset signal, low level reset
(this pin need to connected to the high level (can be connected to the VCC) when selecting IIC bus) |
6 | DC | Select SPI bus as command/data input selection signal, high level: data, low level: command;
When IIC bus is selected, this pin can be used to select IIC slave device address. Select 0x7A for high level and 0x78 for low level; |
7 | CS | OLED chip select signal, low level enable
(this pin need to connected to the power GND when selecting IIC bus) |
Product Documentation
- 1.54inch SPI_OLED Module User Manual
- 1.54inch OLED Specification
- 1.54inch SPI_OLED Module Size Picture
- 1.54inch SPI_OLED Module Schematic
- 1.54inch SPI_OLED Module OLED Schematic and PCB Package Library
- Driver IC SSD1309 Datasheet
Program Download
Reference Materials
- Arduino IDE software use illustration
- RaspberryPi GPIO library installation instructions
- Python Image Library installation instructions
- C51 Keil and stc-isp software use illustration
- STM32 keil software use illustration
- IAR_IDE and MspFet software use illustration
- PCtoLCD2002 software use illustration
- Image2Lcd software use illustration
- Chinese and English display modulo settings
