1.5inch OLED Module SKU:MC01506

Product Picture

1.5-inch OLED, high resolution: 128X64 (same resolution as 12864, high PPI)
Super large viewing angle: greater than 160 °(the screen with the largest viewing angle in the display screen)
Ultra low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage supply (3V ~ 5V), compatible with 3.3V and 5V level logic, without level conversion chip
The default SPI interface (IIC interface can be changed), only 5 IOS are needed to light up easily
The working temperature range is industrial grade (- 20 ℃ ~ 70 ℃)
Military grade process standard, long-term stable work
Provide rich routines, provide the underlying driver technical support

Name	Parameter
Display Color	white
SKU	MC01506
Screen Size	1.5(inch)
Screen Type	OLED
Driver IC	SH1107
Resolution	128*128 (Pixel)
Module Interface	IIC，①-GND,②-VCC,③-SCL,④-SDA
Active Area	26.855x26.855(mm)
Module PCB Size	47.00x34.30(mm)
visual angle	>160°
Operating temperature	-20℃~60℃
Storage temperature	-30℃~70℃
Operating Voltage	3.3V / 5V
Power Consumption	TBD
Rough Weight(Package containing)	12(g)

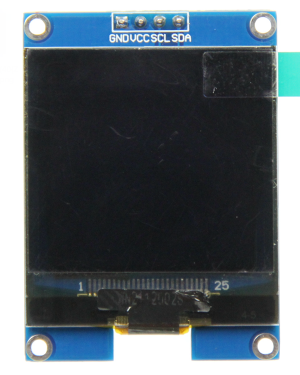

Picture 1. Module pin silk screen	Picture 2. Rear view of the module

NOTE:

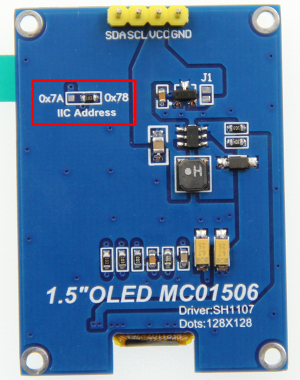

1.This module supports IIC slave device address switching (shown in red box in Picture 4), as follows:

A.Solder the 0x78 side resistance, disconnect the 0x7A side, then select the 0x78 slave address (default);

B.Solder the 0x7A side resistance, disconnect the 0x78 side, then select the 0x7A slave address;

2.The hardware switches the IIC slave device address, and the software also needs to be modified accordingly.

For details, see the test program description document or the user manual..
