4.3inch 16BIT Module SSD1963

From LCD wiki

语言选择

Languages

➤中文
➤EN

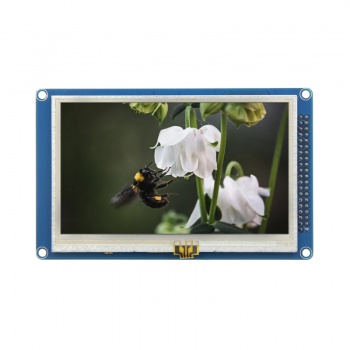

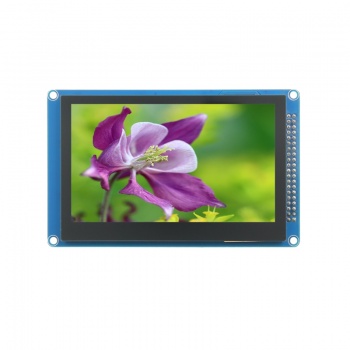

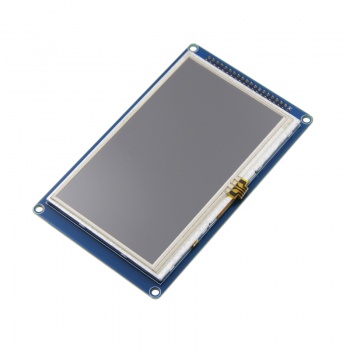

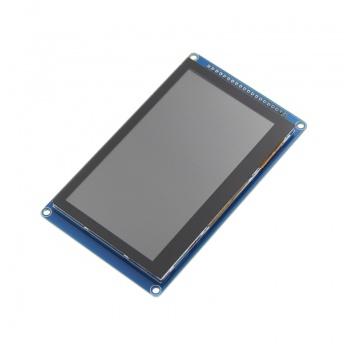

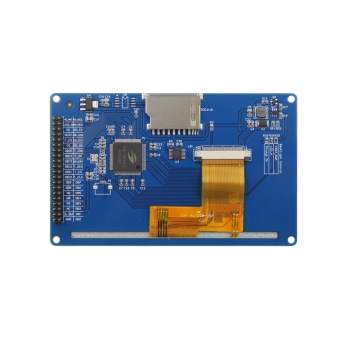

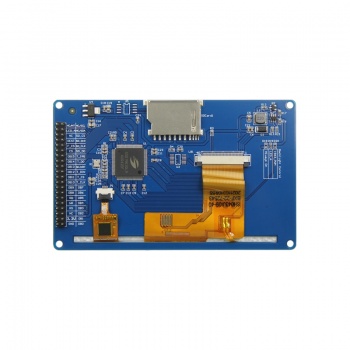

Product Picture


Product Description

  • 4.3-inch high-definition color screen, supporting 16bit RGB 65K color display, with rich display colors
  • Support IPS screen 800x480 resolution, and the display effect is very clear
  • Support TN screen with 480x272 resolution and clear display effect
  • Using 16-bit parallel bus transmission with fast transfer speed
  • Compatible with capacitive touch screen and resistive touch screen
  • Support SPI flash
  • With SD card slot, support SD card expansion
  • Support three backlight control modes (always on, GPIO control, PWM control)
  • Provides a rich sample program for STM32 and C51 platforms
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Name Parameter
Display Color 16BIT RGB 65K color
SKU MRB4963
Screen Size  4.3(inch)
Screen Type TFT
Driver IC SSD1963
Resolution IPS: 800x480(Pixel)

TN: 480x272(Pixel)

Module Interface 16Bit parallel interface
Active Area  95.04.00x53.858(mm)
Touch Screen Type  Capacitive touch screen or Resistive touch screen
Touch IC GT911 (capacitive touch), XPT2046 (resistive touch)
Module PCB Size 120.00x74.00(mm)
Operating Temperature -10℃~60℃
Storage Temperature -20℃~70℃
Operating Voltage 3.3V
IO Voltage 3.3V
Power Consumption TBD
Rough Weight(Package containing) TBD

Interface Definition

Note:

A.The pins beginning with T are the relevant pins of the resistive touch screen;
B.The pins beginning with SD are SD card related pins;
C.Pins beginning with F are SPI flash related pins;
D.NC/ starts with relevant pins of capacitive touch screen;
E.The rest are LCD related pins;
F.SPI flash is not welded. If you need to use it, please weld it yourself;
Number Pin Name Pin Name
1 GND power ground pin
2 3.3V power positive pin(connected to 3.3V)
3 NC Undefined, reserved
4 RS LCD register / data selection control pin (high level: register, low level: data)
5 WR LCD write control pin
6 RD LCD read control pin
7~14 DB8 ~ DB15 LCD data bus high 8-bit pin
15 CS LCD reset control pin( low level enable)
16 F_CS SPI FLASH chip select control pin( low level enable)
17 REST LCD reset control pin( low level reset)
18 NC Undefined, reserved
19 LED_A LCD backlight control pin(it needs to be used according to the selection)
20 NC/INT There is no definition when connecting the resistance touch screen,Used as interrupt pin when connected to capacitive touch screen
21~28 DB0~DB7 LCD data bus low 8-bit pin
29 T_CLK Resistance touch screen SPI bus clock pin
30 T_CS Resistive touch screen chip selection pin (low level enable)
31 T_DIN Resistance touch screen SPI bus write data pin
32 NC/CRT There is no definition when connecting the resistance touch screen,Used as reset pin when connected to capacitive touch screen (low level reset)
33 T_DO Resistance touch screen SPI bus read data pin
34 T_IRQ Resistance touch screen interrupt detection pin (active at low level)
35 SD_DO SD card SDIO bus read data pin
36 SD_CLK SD card SDIO bus clock pin
37 SD_DIN SD card SDIO bus write data pin
38 SD_CS SD card pin selection (low level enable)
39 NC/SDA There is no definition when connecting the resistance touch screen,As IIC bus data pin when connected to capacitive touch screen
40 NC/SCL There is no definition when connecting the resistance touch screen,Used as IIC bus clock pin when connected to capacitive touch screen
