8x16 English font modulo description

From LCD wiki
  • 8x16 English font modulo description

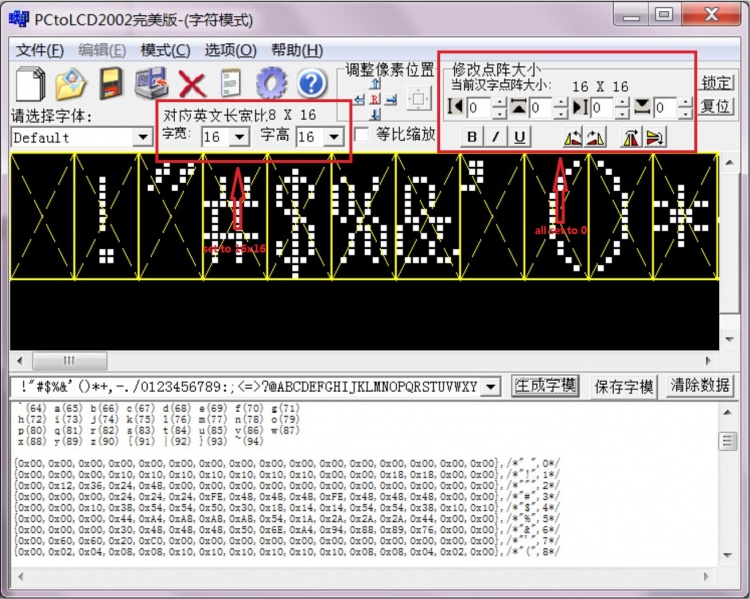

The size settings are as shown below:
The modulo data is as follows (click to open):
8x16 English ASCII modulo data
The function is defined as follows:
void LCD_Show_1608_char(u16 x,u16 y,u16 fc, u16 bc, u8 num,u8 mode)
{
    u8 temp;
    u8 pos,t;
    u16 colortemp=POINT_COLOR;
    num=num-' ';//Get the offset value
    LCD_SetWindows(x,y,x+8-1,y+16-1);//Set a single text display window
    if(!mode) //Non-overlay mode: The font has a background color, which will overwrite the original display
    {
	for(pos=0;pos<16;pos++)
	{
	    temp = asc2_1608[num][pos];//Call 1608 font, you need to take the model definition
	    for(t=0;t<8;t++)
            {
		if(temp&0x80)
	        {
		    Lcd_WriteData_16Bit(fc);
		}
		else
		{
		    Lcd_WriteData_16Bit(bc);
		}
		temp<<=1;
	    }
	}
    }
    else//Overlay mode: the font does not have a background color, and is directly superimposed and displayed on the original display content
    {
	for(pos=0;pos<16;pos++)
	{
	    temp = asc2_1608[num][pos];//Call 1608 font, you need to take the model definition
	    for(t=0;t<8;t++)
	    {
		POINT_COLOR=fc;
		if(temp&0x80)
		{
		    LCD_DrawPoint(x+t,y+pos);//Draw a point
		}
		temp<<=1;
	    }
	}
    }
    POINT_COLOR=colortemp;
    LCD_SetWindows(0,0,lcddev.width-1,lcddev.height-1);//Restore window to full screen
}
